Applications:

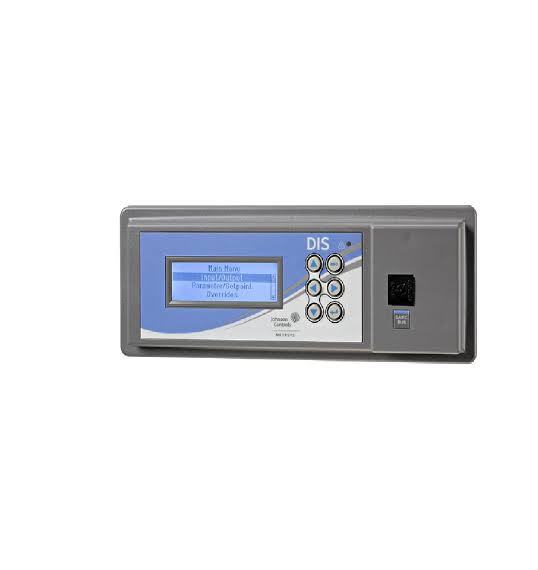

The DIS1710 Local Controller Display is a stand-alone display module designed for installation on the front panel of an enclosure. The DIS1710 display can connect to the Network Control Engine (NCE), Field Equipment Controller (FEC), or Advanced Application Field Equipment (FAC) models that do not have integral displays. The display provides a local user interface for the application running in the controller. Use the Controller Configuration Tool (CCT) tool to configure the display
Technical specifications
Power Consumption: 2 VA maximum
Ambient Operating Temperature: 0°C–50°C (32°F–122°F)
Ambient Operating Conditions: 10%–90% RH, 30°C (86°F) maximum dew point
Ambient Storage Temperature: -40°C–70°C (-40°F–158°F)
Ambient Storage Conditions: 5%–95% RH, 30°C (86°F) maximum dew point
Memory:
256 KB Flash Memory 8 KB Random Access Memory (RAM)
Housing
Plastic housing material: ABS + polycarbonate
Protection: IP20 (IEC60529)
Data Sheet
