Description:

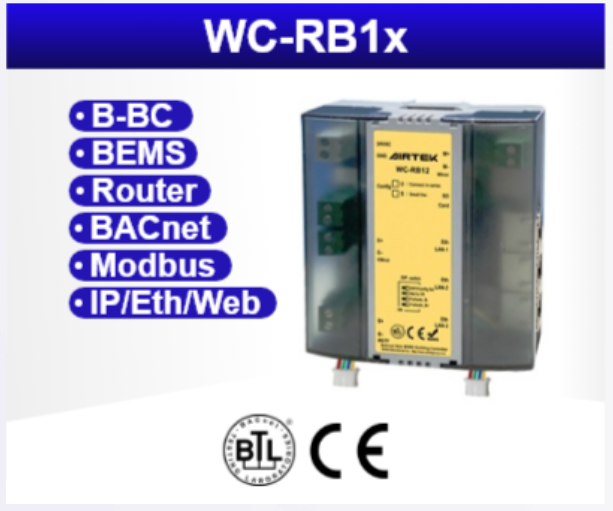

WC-RB. series controller is a B-BC class BACnet LAN
communication integration controller. It has Router function, Stand alone,
and Web Embedded operating system. Suitable for use in buildings
where there is a need to remotely manage the electrical and mechanical
equipment, via a web browser.
Specification:
| Model | Ethernet Port | MS/TP Port | DDC QTY | EIMnet Port | EIM QTY | MSnet Port |
| WC-RB12 | 1 | 1 | 32 sets | 1 | 12 sets | 1 |
Power Supply: 24VAC/DC,5VA.
Microprocessor:32-bit high performance microprocessor with
32K FRAM,64MB SDRAM and 16MB Flash memory.
SD CARD Slot :1 SD Card Slot, Max. 2GB SD Card.
Ethernet Port: One 10/100M Ethernet port for Intranet,
Internet, and BACnet communication.
MS/TP Port:One MS/TP RS-485 port for field controller
connection
MSnet Port: One MODBUS RTU RS-485 port for DSP20U connection
EIMnet Port:One AIRTEK RS-485 port for max. 12 EIM modules
connection
Configure Port:One RS-232 Configure port for initial setup.
Environment: 0~70℃,0~95%RH, non-condensing
Data Sheet: WC-RB12
