Application

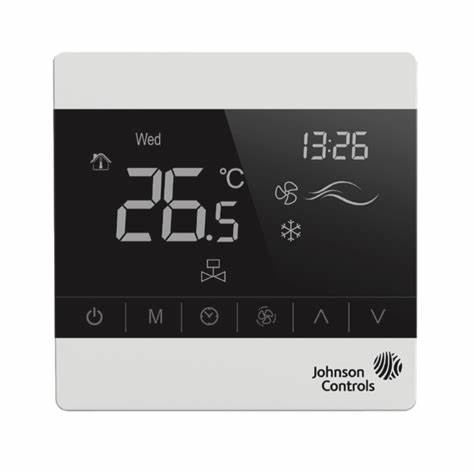

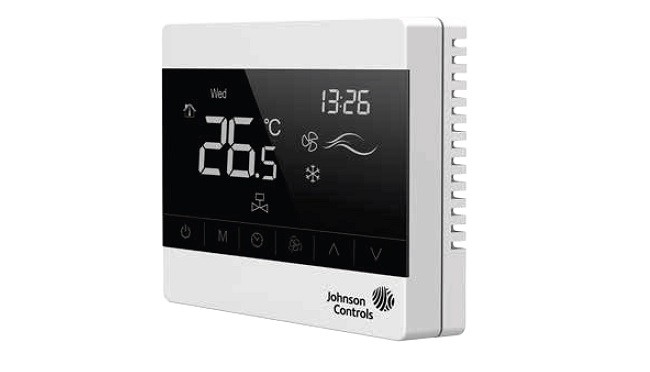

Touch screen thermostats are designed to control heating, cooling, or year
round air conditioning unit in Commercial, Industrial and Residential Installation. Typical
applications include the control of fan coil units, packaged terminal air conditioners and
combination of heating and cooling equipment. As part of the system, T8000 controls a two
way or three-way valve and a multi-speed line voltage fan.
Specifications
Power: AC85-260V 50/60HZ (T8200-TB20…/T8200-TF… )
Requirements: AC24V±10% 50/60HZ (T8200-TB21… )
Accuracy: ±1°C
Display Range: 0~55°C
Setpoint Range: 5~35°C
Valve Control: 4-pipe Cooling and Heating (2xSingle-Pole, Single Throw (SPST), 5A(Maximum)), Relay Output.
Fan Control: 3 x Single-Pole, Single Throw (SPST) , 5A (Res.) at 250 VAC (Maximum); Relay Output for High-Med-Low Fan
Ambient Operating Conditions: 0 to 45°C 90% Non-condensing RH
Ambient Storage Conditions: -10 to 60 °C 90% Non-condensing RH
Housing Material PC: UL 94-V0
Protection Class: IP20
Data Sheet
