Applications & Features

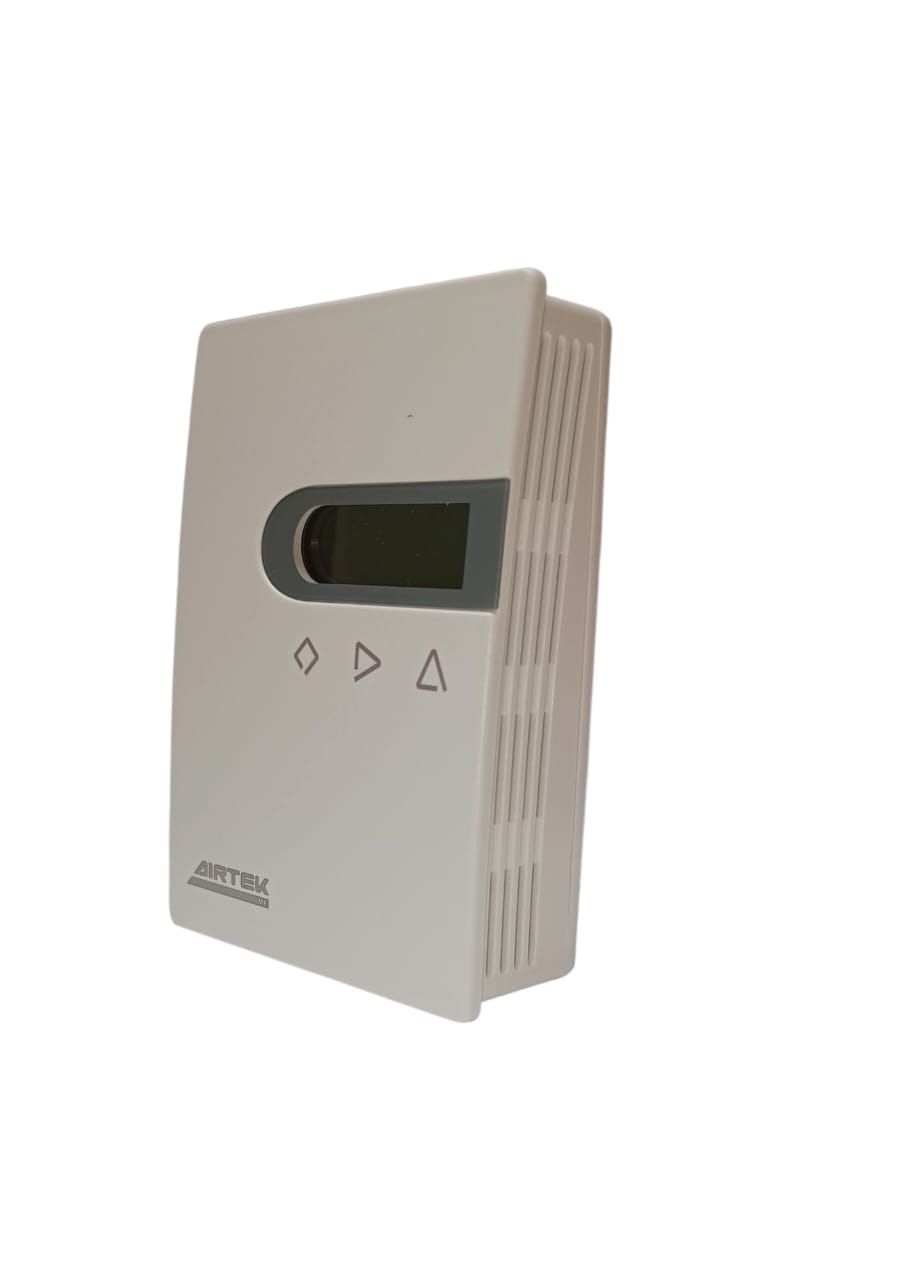

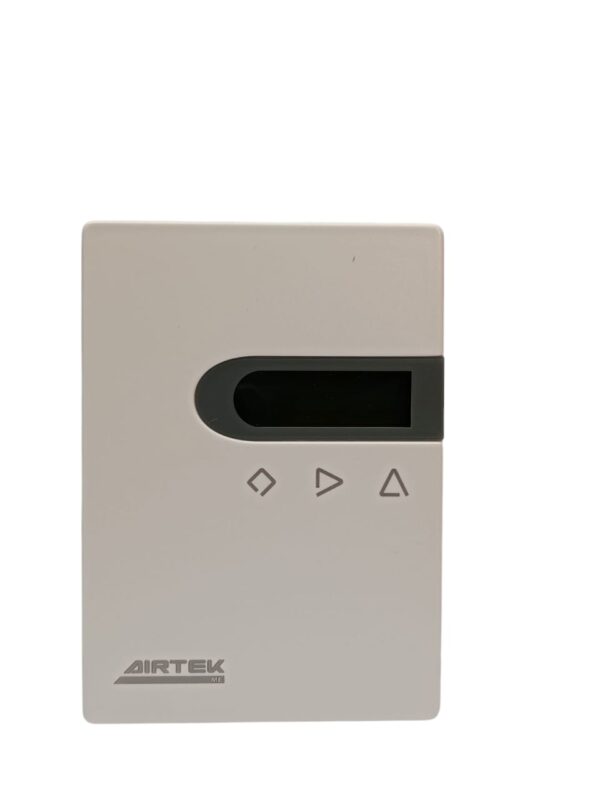

Apply for indoor air T/RH measurement with good performance digital sensor & circuit. The sensor is 100%
field changeable without re-calibration Good long-term stability, reliability and fast response State of art housing. All electrical terminals are on the inside bottom, avoid any possible destroy to PCB when wiring Multiple outputs optional, over voltage and reverse polarity protection, and good anti-interference capability LCD & function keys can set parameters and calibrate output, so the product can be a stand-alone controller.
Specifications
Relative Humidity
Sensor: Digital polymer
Range: 0~100%RH
Output: 4~20mA (2 wires), 0~10VDC (3 wires), RS485/Modbus
Accuracy: 2, 3%RH (25℃, 20~80%RH)
Hysteresis: < +1%RH
Response time: < 10s (25℃, in slow air)
Drift: < +0.5%RH/year
Temperature
Sensor: Digital, RTD or thermistor, see models
Range: 0~50℃
Output: see Models
Accuracy: transmitter: < 0.4℃(0.3℃) @ 5~60℃, see models
Power: Current: 18.5~35VDC (RL=5002); 8.5~35VDC (R _= 02)
Voltage: 16~28VAC/ 16~35VDC
Output Load: ≤5000 (current), ≥2KQ (voltage)
Relay output: 2xSPST, 3A/30VDC, 3A/250VAC
Display and Keys: 4 bits LCD, with unit indication, backligh
(4-20mA N/A), 3 keys, see details on LCD & Keys operation
Display Resolution: 0.1℃, 0.1%RH
Temp. Limit: – 20~70℃, 5~95%RH (Non cond.)
Storage Temperature: – 20~80℃
Data Sheet:H1N
