:Description

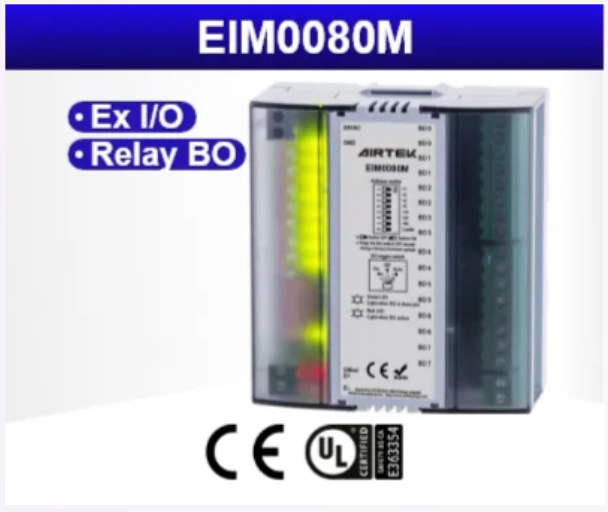

EIM.. series I/O expansion modules are used to expand the points of AIRTEK WC/GC/DAC/DSC series programmable controllers.
Specification:
Power Supply：24VAC/DC, 2 VA.
Microprocessor: 32-bit high-speed processor (MCU).
Binary Input (BI)：Accept dry contact or open collector signal, 5,000Vrms optically isolated.
Pulse Input (PI)：Accepts the up to 100HZ open collector or dry contact, 5,000Vrms optically isolated.
Binary Output (BO)：7A/250VAC SPST dry contact outputs, 5,000Vrms optically isolated.
EIMnet Port: Selectable communication speed 9,600/19,200/38,400 bps.
Environment：0～70℃, 0～95%RH non-condense.
Certification: EMC Directive 89/336/EEC (European CE Mark).
Data Sheet: EIM0080M
